06 Object Detection

LightlyEdge comes with a built-in object detection model. The model is tailored for automotive industry and provides classes like car, pedestrian, bicycle, truck, etc. Moreover, classification can be performed for the traffic sign class to identify the sign type. Other detection classes might be enabled for classification in the future.

In this guide, we detect objects in the image on the left. The image on the right shows the result. We also set up a detection strategy to identify images with objects of interest.

Project Setup

Code for this tutorial is provided in examples/06_object_detection directory. Before starting this tutorial, copy the model file to examples/lightly_model.tar and verify that your project layout is as follows:

lightly_edge_sdk_cpp
├── ...
└── examples
   ├── ...
   ├── 06_object_detection
   │ ├── CMakeLists.txt
   │ ├── images
   │ │   └── swiss_town.jpg
   │ ├── main.cpp
   │ └── stb_image.h
   └── lightly_model.tar

Build and Run a Complete Example

See below the content of the main.cpp file. We will first run the example, and explain it right after.

1// main.cpp
2#include <iostream>
3#include <iomanip>
4#define STB_IMAGE_IMPLEMENTATION
5#include "stb_image.h"
6#include "lightly_edge_sdk.h"
7using namespace lightly_edge_sdk;
8
9// Loads an image using stb_image and returns it as a lightly_edge_sdk::Frame struct.
10Frame load_image(std::string image_path) {
11 std::cout << "Loading image: " << image_path << std::endl;
12 int width, height, channels;
13 unsigned char *data = stbi_load(image_path.c_str(), &width, &height, &channels, 0);
14 if (data == nullptr) {
15 throw std::runtime_error("Failed to load image.");
16 }
17 // Create a Frame struct.
18 return Frame(width, height, data);
19}
20
21int main() {
22 // Initialize the LightlyEdge SDK.
23 std::cout << "Initializing LightlyEdge..." << std::endl << std::endl;
24 LightlyEdgeConfig config = default_config();
25 config.detector_config.object_detector_enable = true;
26 config.detector_config.classifiers_enable = true;
27 LightlyEdge lightly_edge = LightlyEdge::new_from_tar("../lightly_model.tar", config);
28
29 // Detect objects in the image.
30 Frame frame = load_image("images/swiss_town.jpg");
31 std::vector<ObjectDetection> detections = lightly_edge.detect(frame);
32
33 // Get class labels.
34 // For lightly_model_14.tar, class ID 5 is "traffic sign".
35 const int traffic_sign_class_id = 5;
36 auto class_labels = lightly_edge.detection_class_labels();
37 auto traffic_sign_labels = lightly_edge.detection_subclass_labels(traffic_sign_class_id);
38
39 // Print detections.
40 std::cout << "Detected " << detections.size() << " objects:" << std::endl;
41 for (auto &det : detections) {
42 std::cout << std::fixed << std::setprecision(2)
43 << "\"" << class_labels[det.class_id] << "\""
44 << ", confidence=" << det.confidence
45 << ", x=" << det.x << ", y=" << det.y << ", w=" << det.w << ", h=" << det.h;
46 if (det.class_id == traffic_sign_class_id && det.subclass_id >= 0) {
47 std::cout << ", subclass: \"" << traffic_sign_labels[det.subclass_id] << "\"";
48 }
49 std::cout << std::endl;
50 }
51
52 // Register a detection strategy.
53 // For lightly_model_14.tar, class ID 5 is "traffic sign" , its subclass 32 is "parking".
54 // Detection threshold is set to 0.7.
55 lightly_edge.register_detection_strategy(5, 32, 0.7);
56
57 // Check if the image should be selected.
58 std::vector<float> image_embedding = lightly_edge.embed_frame(frame);
59 SelectInfo select_info = lightly_edge.should_select(image_embedding, detections);
60 std::cout << "Should select: " << select_info.detection[0].should_select << std::endl;
61
62 // The image is no longer needed, free the memory.
63 stbi_image_free(frame.rgbImageData_);
64
65 std::cout << "Program successfully finished." << std::endl;
66 return 0;
67}
LightlyEdge.
Definition lightly_edge_sdk.h:118
auto register_detection_strategy(uint32_t class_id, int32_t subclass_id, float threshold) const -> void
Register a detection strategy.
Definition lightly_edge_sdk.h:733
auto detect(const Frame &frame) const -> std::vector< ObjectDetection >
Run object detection on a frame.
Definition lightly_edge_sdk.h:1226
auto should_select(const std::vector< float > &embedding, const std::vector< ObjectDetection > &detections) const -> SelectInfo
Check if a frame should be selected.
Definition lightly_edge_sdk.h:985
auto detection_class_labels() const noexcept -> std::vector< std::string >
Get labels of object detection classes.
Definition lightly_edge_sdk.h:1242
auto detection_subclass_labels(uint32_t class_id) const noexcept -> std::vector< std::string >
Get the subclass labels for a specified detection class.
Definition lightly_edge_sdk.h:1280
auto embed_frame(const Frame &frame) const -> std::vector< float >
Embed an RGB image.
Definition lightly_edge_sdk.h:199
Namespace with core LightlyEdge SDK functionality.
Definition lightly_edge_error.h:15
Definition lightly_edge_rs_bindings.h:43
Frame data for LightlyEdge.
Definition lightly_edge_sdk.h:25
void * rgbImageData_
Pointer to the RGB image data.
Definition lightly_edge_sdk.h:42
Selection information about a processed frame.
Definition lightly_edge_sdk.h:83
std::vector< DetectionSelectInfo > detection
The detection selection info for each detection strategy in the order of registration.
Definition lightly_edge_sdk.h:106

Build and run:

# Enter the project folder.
cd 06_object_detection
# Configure CMake. This will create a `build` subfolder.
cmake -B build
# Build using configuration from the `build` subfolder.
cmake --build build
# Run (Linux variant)
./build/main
# Or run (Windows variant)
.\build\main.exe

The output should be similar to the following, the exact numbers might slightly differ on your machine architecture:

Initializing LightlyEdge...
Loading image: images/swiss_town.jpg
Detected 14 objects:
"car", confidence=0.96, x=464, y=348, w=201, h=176
"car", confidence=0.95, x=0, y=352, w=262, h=188
"car", confidence=0.95, x=368, y=371, w=79, h=62
"car", confidence=0.94, x=219, y=358, w=150, h=118
"traffic light", confidence=0.88, x=493, y=141, w=31, h=74
"car", confidence=0.83, x=442, y=371, w=52, h=44
"traffic sign", confidence=0.82, x=784, y=203, w=44, h=70, subclass: "parking"
"traffic light", confidence=0.76, x=622, y=139, w=27, h=65
"traffic light", confidence=0.72, x=780, y=273, w=20, h=47
"person", confidence=0.70, x=752, y=370, w=23, h=63
"traffic light", confidence=0.64, x=798, y=273, w=21, h=46
"person", confidence=0.63, x=742, y=370, w=19, h=67
"traffic light", confidence=0.61, x=652, y=318, w=11, h=26
"traffic sign", confidence=0.59, x=799, y=328, w=29, h=32, subclass: "no_left_turn"
Should select: 1
Program successfully finished.

We see 14 objects were successfully detected.

Note
In this example we use the model version lightly_model_14.tar. You might need to adjust the thresholds in this tutorial if your model version differs.

Object Detection

By default, object detection and object classification models are not loaded. To enable them, we pass lightly_edge_rs::LightlyEdgeConfig when creating a LightlyEdge instance. We enable object detection and classification by:

LightlyEdgeConfig config = default_config();
config.detector_config.object_detector_enable = true;
config.detector_config.classifiers_enable = true;
LightlyEdge lightly_edge = LightlyEdge::new_from_tar("../lightly_model.tar", config);

Detection is performed with lightly_edge_sdk::LightlyEdge::detect. Moreover, if classifiers_enable was set to true, classification is performed for each class for which a classifier exists (currently only traffic_sign). To bound the compute time, only 5 most confident detections are classified for each class. This value can be customised by setting config.detector_config.max_classifications.

// Detect objects in the image.
Frame frame = load_image("images/swiss_town.jpg");
std::vector<ObjectDetection> detections = lightly_edge.detect(frame);

Next we print the detections. First we fetch the list of class labels with lightly_edge_sdk::LightlyEdge::detection_class_labels and lightly_edge_sdk::LightlyEdge::detection_subclass_labels. The models return zero-based class IDs, these lists provide the mapping from ID to a human readable label.

// Get class labels.
// For lightly_model_14.tar, class ID 5 is "traffic sign".
const int traffic_sign_class_id = 5;
auto class_labels = lightly_edge.detection_class_labels();
auto traffic_sign_labels = lightly_edge.detection_subclass_labels(traffic_sign_class_id);

Result of detection is a list of lightly_edge_rs::ObjectDetection structures. The printing code showcases its members:

  • class_id is the ID of the detected class.
  • confidence is a float value between 0 and 1. All detections have confidence value at least 0.5.
  • Bounding box in pixel coordinates. Values x and y identify the top left corner, w its width and h its height.
  • subclass_id is the subclass ID determined by a classifier. If a classification was not performed for this detection the value is set to -1.

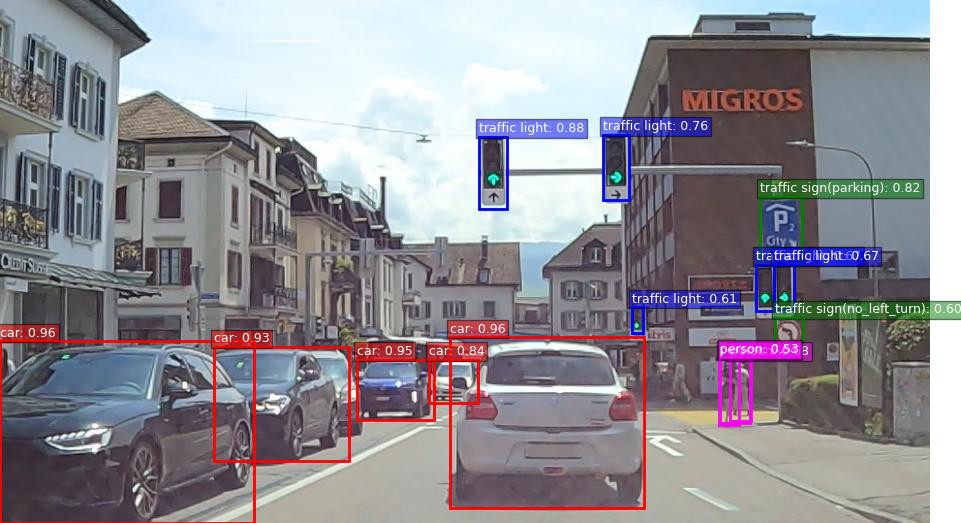

When overlaid over the original image, the detections look like this:

Detection Strategy

Additionally, a detection strategy can be registered with LightlyEdge. The arguments of the lightly_edge_sdk::LightlyEdge::register_detection_strategy function are class ID, subclass ID, and confidence threshold. A frame is considered matching the strategy if it contains a detection where the class ID and subclass ID match and the detection confidence is higher than the threshold. When registering the strategy, value -1 can be used for subclass ID to have it ignored.

// Register a detection strategy.
// For lightly_model_14.tar, class ID 5 is "traffic sign" , its subclass 32 is "parking".
// Detection threshold is set to 0.7.
lightly_edge.register_detection_strategy(5, 32, 0.7);

Finally, we check whether the frame matches the strategy by calling should_select. Note that the image_embedding parameter is irrelevant in this setup.

// Check if the image should be selected.
std::vector<float> image_embedding = lightly_edge.embed_frame(frame);
SelectInfo select_info = lightly_edge.should_select(image_embedding, detections);
std::cout << "Should select: " << select_info.detection[0].should_select << std::endl;

Because the example image contains a traffic sign of type "parking" the value of select_info.detection[0].should_select will be true.

Next Steps

Congratulations! You have completed the Getting Started guide. Next you can explore LightlyEdge topics in detail in our User Manual or check out the API reference.
