Instance Segmentation¶

Note

🔥 LightlyTrain now supports training DINOv3-based instance segmentation models with the EoMT architecture by Kerssies et al.!

Benchmark Results¶

Below we provide the models and report the validation mAP and inference latency of different DINOv3 models fine-tuned on COCO with LightlyTrain. You can check here how to use these models for further fine-tuning.

You can also explore running inference and training these models using our Colab notebook:

COCO¶

Implementation	Model	Val mAP mask	Avg. Latency (ms)	Params (M)	Input Size
LightlyTrain	dinov3/vitt16-eomt-inst-coco	25.4	12.7	6.0	640×640
LightlyTrain	dinov3/vitt16plus-eomt-inst-coco	27.6	13.3	7.7	640×640
LightlyTrain	dinov3/vits16-eomt-inst-coco	32.6	19.4	21.6	640×640
LightlyTrain	dinov3/vitb16-eomt-inst-coco	40.3	39.7	85.7	640×640
LightlyTrain	dinov3/vitl16-eomt-inst-coco	46.2	80.0	303.2	640×640
Original EoMT	dinov3/vitl16-eomt-inst-coco	45.9	-	303.2	640×640

Training follows the protocol in the original EoMT paper. All models are trained on the COCO dataset with batch size 16 and learning rate 2e-4. Models using vitt16 or vitt16plus train for 540K steps (~72 epochs). The remaining ones are trained for 90K steps (~12 epochs). The average latency values were measured with model compilation using torch.compile on a single NVIDIA T4 GPU with FP16 precision.

Train an Instance Segmentation Model¶

Training an instance segmentation model with LightlyTrain is straightforward and only requires a few lines of code. See data for more details on how to prepare your dataset.

import lightly_train

if __name__ == "__main__":
    lightly_train.train_instance_segmentation(
        out="out/my_experiment",
        model="dinov3/vitl16-eomt-inst-coco",
        data={
            "path": "my_data_dir",      # Path to dataset directory
            "train": "images/train",    # Path to training images
            "val": "images/val",        # Path to validation images
            "names": {                  # Classes in the dataset
                0: "background",
                1: "car",
                2: "bicycle",
                # ...
            },
            # Optional, classes that are in the dataset but should be ignored during
            # training.
            # "ignore_classes": [0],
            #
            # Optional, skip images without label files. By default, these are included
            # as negative samples.
            # "skip_if_label_file_missing": True,
        },
    )

During training, the best and last model weights are exported to out/my_experiment/exported_models/, unless disabled in save_checkpoint_args:

best (highest validation mask mAP): exported_best.pt
last: exported_last.pt

You can use these weights to continue fine-tuning on another dataset by loading the weights with model="<checkpoint path>":

import lightly_train

if __name__ == "__main__":
    lightly_train.train_instance_segmentation(
        out="out/my_experiment",
        model="out/my_experiment/exported_models/exported_best.pt",  # Continue training from the best model
        data={...},
    )

Load the Trained Model from Checkpoint and Predict¶

After the training completes, you can load the best model checkpoints for inference like this:

import lightly_train

model = lightly_train.load_model("out/my_experiment/exported_models/exported_best.pt")
results = model.predict("image.jpg")
results["labels"]   # Class labels, tensor of shape (num_instances,)
results["masks"]    # Binary masks, tensor of shape (num_instances, height, width).
                    # Height and width correspond to the original image size.
results["scores"]   # Confidence scores, tensor of shape (num_instances,)

Or use one of the pretrained models directly from LightlyTrain:

import lightly_train

model = lightly_train.load_model("dinov3/vitl16-eomt-inst-coco")
results = model.predict("image.jpg")

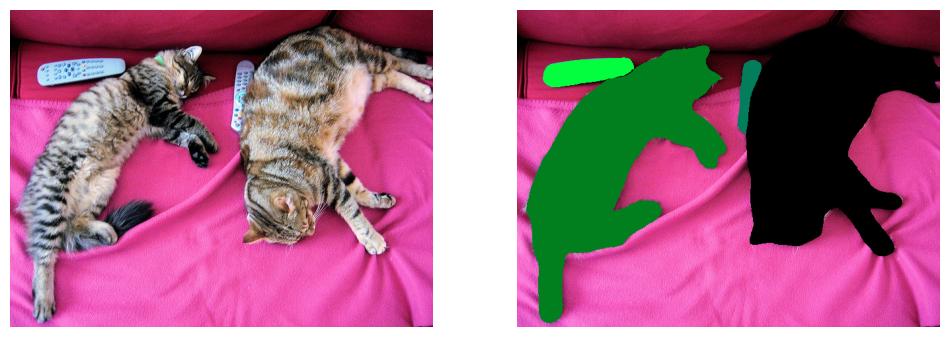

Visualize the Predictions¶

You can visualize the predicted masks like this:

import matplotlib.pyplot as plt
from torchvision.io import read_image
from torchvision.utils import draw_segmentation_masks

image = read_image("image.jpg")
image_with_masks = draw_segmentation_masks(image, results["masks"], alpha=0.6)
plt.imshow(image_with_masks.permute(1, 2, 0))

Data¶

LightlyTrain supports instance segmentation datasets in YOLO format. Every image must have a corresponding annotation file that contains for every object in the image a line with the class ID and (x1, y1, x2, y2, …) polygon coordinates in normalized format.

0 0.782016 0.986521 0.937078 0.874167 0.957297 0.782021 0.950562 0.739333
1 0.557859 0.143813 0.487078 0.0314583 0.859547 0.00897917 0.985953 0.130333 0.984266 0.184271

The following image formats are supported:

jpg
jpeg
png
ppm
bmp
pgm
tif
tiff
webp

Your dataset directory must be organized like this:

my_data_dir/
├── images
│   ├── train
│   │   ├── image1.jpg
│   │   ├── image2.jpg
│   │   └── ...
│   └── val
│       ├── image1.jpg
│       ├── image2.jpg
│       └── ...
└── labels
    ├── train
    │   ├── image1.txt
    │   ├── image2.txt
    │   └── ...
    └── val
        ├── image1.txt
        ├── image2.txt
        └── ...

Alternatively, the train/val splits can also be at the top level:

my_data_dir/
├── train
│   ├── images
│   │   ├── image1.jpg
│   │   ├── image2.jpg
│   │   └── ...
│   └── labels
│       ├── image1.txt
│       ├── image2.txt
│       └── ...
└── val
    ├── images
    │   ├── image1.jpg
    │   ├── image2.jpg
    │   └── ...
    └── labels
        ├── image1.txt
        ├── image2.txt
        └── ...

The data argument in train_instance_segmentation must point to the dataset directory and specify the paths to the training and validation images relative to the dataset directory. For example:

import lightly_train

if __name__ == "__main__":
    lightly_train.train_instance_segmentation(
        out="out/my_experiment",
        model="dinov3/vitl16-eomt-inst-coco",
        data={
            "path": "my_data_dir",      # Path to dataset directory
            "train": "images/train",    # Path to training images
            "val": "images/val",        # Path to validation images
            "names": {                  # Classes in the dataset
                0: "background",        # Classes must match those in the annotation files
                1: "car",
                2: "bicycle",
                # ...
            },
        },
    )

Missing Labels¶

There are three cases in which an image may not have any corresponding labels:

The label file is missing.
The label file is empty.
The label file only contains annotations for classes that are in ignore_classes.

LightlyTrain treats all three cases as “negative” samples and includes the images in training with an empty list of segmentation masks.

If you would like to exclude images without label files from training, you can set the skip_if_label_file_missing argument in the data configuration. This only excludes images without a label file (case 1) but still includes cases 2 and 3 as negative samples.

import lightly_train

if __name__ == "__main__":
    lightly_train.train_instance_segmentation(
        ...,
        data={
            "path": "my_data_dir",
            "train": "images/train",
            "val": "images/val",
            "names": {...},
            "skip_if_label_file_missing": True, # Skip images without label files.
        }
    )

Model¶

The model argument defines the model used for instance segmentation training. The following models are available:

DINOv3 Models¶

dinov3/vits16-eomt
dinov3/vits16plus-eomt
dinov3/vitb16-eomt
dinov3/vitl16-eomt
dinov3/vitl16plus-eomt
dinov3/vith16plus-eomt
dinov3/vit7b16-eomt
dinov3/vits16-eomt-inst-coco (fine-tuned on COCO)
dinov3/vitb16-eomt-inst-coco (fine-tuned on COCO)
dinov3/vitl16-eomt-inst-coco (fine-tuned on COCO)

All models are pretrained by Meta and fine-tuned by Lightly.

Training Settings¶

See Train Settings on how to configure training settings.

Logging¶

See Logging on how to configure logging.

Resume Training¶

See Resume Training on how to resume training.

Exporting a Checkpoint to ONNX¶

Open Neural Network Exchange (ONNX) is a standard format for representing machine learning models in a framework independent manner. In particular, it is useful for deploying our models on edge devices where PyTorch is not available.

Requirements¶

Exporting to ONNX requires some additional packages to be installed. Namely

onnx
onnxruntime if verify is set to True.
onnxslim if simplify is set to True.

You can install them with:

pip install "lightly-train[onnx,onnxruntime,onnxslim]"

The following example shows how to export a previously trained model to ONNX.

import lightly_train

# Instantiate the model from a checkpoint.
model = lightly_train.load_model("out/my_experiment/exported_models/exported_best.pt")

# Export the PyTorch model to ONNX.
model.export_onnx(
    out="out/my_experiment/exported_models/model.onnx",
    # precision="fp16", # Export model with FP16 weights for smaller size and faster inference.
)

See export_onnx() for all available options when exporting to ONNX.

The following notebook shows how to export a model to ONNX in Colab:

Exporting a Checkpoint to TensorRT¶

TensorRT engines are built from an ONNX representation of the model. The export_tensorrt method internally exports the model to ONNX (see the ONNX export section above) before building a TensorRT engine for fast GPU inference.

Requirements¶

TensorRT is not part of LightlyTrain’s dependencies and must be installed separately. Installation depends on your OS, Python version, GPU, and NVIDIA driver/CUDA setup. See the TensorRT documentation for more details.

On CUDA 12.x systems you can often install the Python package via:

pip install tensorrt-cu12

import lightly_train

# Instantiate the model from a checkpoint.
model = lightly_train.load_model("out/my_experiment/exported_models/exported_best.pt")

# Export to TensorRT from an ONNX file.
model.export_tensorrt(
    out="out/my_experiment/exported_models/model.trt", # TensorRT engine destination.
    # precision="fp16", # Export model with FP16 weights for smaller size and faster inference.
)

See export_tensorrt() for all available options when exporting to TensorRT.

You can also learn more about exporting EoMT to TensorRT using our Colab notebook:

Default Image Transform Arguments¶

The following are the default image transform arguments. See Transforms on how to customize transform settings.
