Panoptic Segmentation¶

Note

LightlyTrain now supports training DINOv2 and DINOv3-based panoptic segmentation models with the EoMT architecture by Kerssies et al.!

Benchmark Results¶

Below we provide the models and report the validation panoptic quality (PQ) and inference latency of different DINOv3 models fine-tuned on COCO with LightlyTrain. You can check here how to use these models for further fine-tuning.

You can also explore running inference and training these models using our Colab notebook:

COCO¶

Implementation	Model	Val PQ	Avg. Latency (ms)	Params (M)	Input Size
LightlyTrain	dinov3/vitt16-eomt-panoptic-coco	38.0	13.5	6.0	640×640
LightlyTrain	dinov3/vitt16plus-eomt-panoptic-coco	41.4	14.1	7.7	640×640
LightlyTrain	dinov3/vits16-eomt-panoptic-coco	46.8	21.2	23.4	640×640
LightlyTrain	dinov3/vitb16-eomt-panoptic-coco	53.2	39.4	92.5	640×640
LightlyTrain	dinov3/vitl16-eomt-panoptic-coco	57.0	80.1	315.1	640×640
LightlyTrain	dinov3/vitl16-eomt-panoptic-coco-1280	59.0	500.1	315.1	1280×1280
EoMT (CVPR 2025 paper, current SOTA)	dinov3/vitl16-eomt-panoptic-coco-1280	58.9	-	315.1	1280×1280

Training follows the protocol in the original EoMT paper. Tiny models are trained for 360K steps (48 epochs), small and base models for 180K steps (24 epochs) and large models for 90K steps (12 epochs) on the COCO dataset with batch size 16 and learning rate 2e-4. The average latency values were measured with model compilation using torch.compile on a single NVIDIA T4 GPU with FP16 precision.

Train a Panoptic Segmentation Model¶

Training a panoptic segmentation model with LightlyTrain is straightforward and only requires a few lines of code using the train_panoptic_segmentation function. See data for more details on how to prepare your dataset.

import lightly_train

if __name__ == "__main__":
    lightly_train.train_panoptic_segmentation(
        out="out/my_experiment",
        model="dinov3/vitl16-eomt-panoptic-coco",
        data={
            "train": {
                "images": "images/train",   # Path to train images
                "masks": "annotations/train", # Path to train mask images
                "annotations": "annotations/train.json", # Path to train COCO-style annotations
            },
            "val": {
                "images": "images/val", # Path to val images
                "masks": "annotations/val", # Path to val mask images
                "annotations": "annotations/val.json", # Path to val COCO-style annotations
            },
        },
    )

During training, the best and last model weights are exported to out/my_experiment/exported_models/, unless disabled in save_checkpoint_args:

best (highest validation PQ): exported_best.pt
last: exported_last.pt

You can use these weights to continue fine-tuning on another dataset by loading the weights via the model argument (model="<checkpoint path>"):

import lightly_train

if __name__ == "__main__":
    lightly_train.train_panoptic_segmentation(
        out="out/my_experiment",
        model="out/my_experiment/exported_models/exported_best.pt",  # Continue training from the best model
        data={...},
    )

Load the Trained Model from Checkpoint and Predict¶

After the training completes, you can load the best model checkpoints for inference like this:

import lightly_train

model = lightly_train.load_model("out/my_experiment/exported_models/exported_best.pt")
results = model.predict("image.jpg")
results["masks"]    # Masks with (class_label, segment_id) for each pixel, tensor of
                    # shape (height, width, 2). Height and width correspond to the
                    # original image size.
results["segment_ids"]    # Segment ids, tensor of shape (num_segments,).
results["scores"]   # Confidence scores, tensor of shape (num_segments,)

Or use one of the pretrained models directly from LightlyTrain:

import lightly_train

model = lightly_train.load_model("dinov3/vitl16-eomt-panoptic-coco")
results = model.predict("image.jpg")

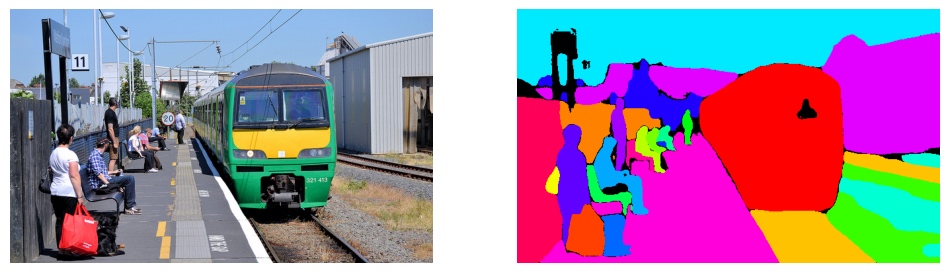

Visualize the Predictions¶

You can visualize the predicted masks like this:

import matplotlib.pyplot as plt
import torch
from torchvision.io import read_image
from torchvision.utils import draw_segmentation_masks

image = read_image("image.jpg")
masks = results["masks"]
segment_ids = results["segment_ids"]
masks = torch.stack([masks[..., 1] == -1] + [masks[..., 1] == segment_id for segment_id in segment_ids])
colors = [(0, 0, 0)] + [[int(color * 255) for color in plt.cm.tab20c(i / len(segment_ids))[:3]] for i in range(len(segment_ids))]
image_with_masks = draw_segmentation_masks(image, masks, colors=colors, alpha=1.0)
plt.imshow(image_with_masks.permute(1, 2, 0))

Data¶

LightlyTrain supports panoptic segmentation datasets in COCO format. Every image must have a corresponding mask image that encodes the segmentation class and segment ID for each pixel. The dataset must also include COCO-style JSON annotation files that define the thing and stuff classes and list the individual segments for each image. See the COCO Panoptic Segmentation format for more details.

The data argument accepts either a dictionary or a path to a YAML file containing the same configuration. When loading from YAML, relative paths are resolved relative to the YAML file. Unknown top-level YAML keys are ignored, but unknown nested keys still raise a validation error. Training uses the train and val splits.

The following image formats are supported:

jpg
jpeg
png
ppm
bmp
pgm
tif
tiff
webp

Your dataset directory must be organized like this:

my_data_dir/
├── images
│   ├── train
│   │   ├── image1.jpg
│   │   ├── image2.jpg
│   │   └── ...
│   └── val
│       ├── image1.jpg
│       ├── image2.jpg
│       └── ...
└── annotations
    ├── train
    │   ├── image1.png
    │   ├── image2.png
    │   └── ...
    ├── train.json
    ├── val
    │   ├── image1.png
    │   ├── image2.png
    │   └── ...
    └── val.json

The directories can have any name, as long as the paths are correctly specified in the data argument.

See the Colab notebook for an example dataset and how to set up the data for training.

Model¶

The model argument defines the model used for panoptic segmentation training. The following models are available:

DINOv3 Models¶

dinov3/vitt16-eomt-panoptic-coco (fine-tuned on COCO)
dinov3/vitt16plus-eomt-panoptic-coco (fine-tuned on COCO)
dinov3/vits16-eomt-panoptic-coco (fine-tuned on COCO)
dinov3/vitb16-eomt-panoptic-coco (fine-tuned on COCO)
dinov3/vitl16-eomt-panoptic-coco (fine-tuned on COCO)
dinov3/vitl16-eomt-panoptic-coco-1280 (fine-tuned on COCO with 1280x1280 input size)
dinov3/vitt16-eomt
dinov3/vitt16-eupe-eomt - EUPE weights
dinov3/vitt16plus-eomt
dinov3/vits16-eomt
dinov3/vits16-eupe-eomt - EUPE weights
dinov3/vits16-lingbot-eomt - LingBot Vision weights
dinov3/vits16plus-eomt
dinov3/vitb16-eomt
dinov3/vitb16-eupe-eomt - EUPE weights
dinov3/vitb16-lingbot-eomt - LingBot Vision weights
dinov3/vitl16-eomt
dinov3/vitl16-lingbot-eomt - LingBot Vision weights
dinov3/vitl16plus-eomt
dinov3/vith16plus-eomt
dinov3/vit7b16-eomt

Unless noted otherwise, all DINOv3 backbones are initialized from weights pretrained by Meta. The non-EUPE models with vitt16 and vitt16plus backbones use Lightly-pretrained DINOv3 backbone weights instead. Models marked as EUPE use EUPE weights. DINOv3 models are under the DINOv3 license. EUPE models are under the FAIR Noncommercial Research License. Models marked as LingBot use LingBot Vision weights, which are released under the Apache 2.0 license. As they are built on DINOv3, the terms of the DINOv3 license also apply to these models.

DINOv2 Models¶

dinov2/vits14-eomt
dinov2/vitb14-eomt
dinov2/vitl14-eomt
dinov2/vitg14-eomt

All DINOv2 models are pretrained by Meta.

Training Settings¶

See Train Settings on how to configure training settings.

Logging¶

See Logging on how to configure logging.

Resume Training¶

See Resume Training on how to resume training.

Default Image Transform Arguments¶

The following are the default image transform arguments. See transform_args and Transforms on how to customize transform settings.

Exporting a Checkpoint to ONNX¶

Open Neural Network Exchange (ONNX) is a standard format for representing machine learning models in a framework independent manner. In particular, it is useful for deploying our models on edge devices where PyTorch is not available.

Requirements¶

Exporting to ONNX requires some additional packages to be installed. Namely

onnx
onnxruntime if verify is set to True.
onnxslim if simplify is set to True.

You can install them with:

pip install "lightly-train[onnx,onnxruntime,onnxslim]"

The following example shows how to export a previously trained model to ONNX.

import lightly_train

# Instantiate the model from a checkpoint.
model = lightly_train.load_model("out/my_experiment/exported_models/exported_best.pt")

# Export to ONNX.
model.export_onnx(
    out="out/my_experiment/exported_models/model.onnx",
    # precision="fp16", # Export model with FP16 weights for smaller size and faster inference.
)

See export_onnx() for all available options when exporting to ONNX.

The following notebook shows how to export a model to ONNX in Colab:

Exporting a Checkpoint to TensorRT¶

TensorRT engines are built from an ONNX representation of the model. The export_tensorrt method internally exports the model to ONNX (see the ONNX export section above) before building a TensorRT engine for fast GPU inference.

Requirements¶

TensorRT is not part of LightlyTrain’s dependencies and must be installed separately. Installation depends on your OS, Python version, GPU, and NVIDIA driver/CUDA setup. See the TensorRT documentation for more details.

On CUDA 12.x systems you can often install the Python package via:

pip install tensorrt-cu12

import lightly_train

# Instantiate the model from a checkpoint.
model = lightly_train.load_model("out/my_experiment/exported_models/exported_best.pt")

# Export to TensorRT from an ONNX file.
model.export_tensorrt(
    out="out/my_experiment/exported_models/model.trt", # TensorRT engine destination.
    # precision="fp16", # Export model with FP16 weights for smaller size and faster inference.
)

See export_tensorrt() for all available options when exporting to TensorRT.

You can also learn more about exporting EoMT to TensorRT using our Colab notebook:
