Debugging Training Instability¶
This tutorial shows how to use LightlyTrain’s debugging tools to find and fix numerical
instability in fine-tuning. We build a small synthetic dataset, train a ResNet18 with
one intentionally unstable layer, and use gradient norm logging and
DebugUnderflowOverflow to locate the problem.
Note
The debugging tools (debug_args) are only available in the fine-tuning
commands (train_image_classification, train_object_detection, …), not in
self-supervised pretrain. This tutorial uses train_image_classification.
Install Dependencies¶
pip install lightly-train
Generate a Synthetic Dataset¶
We use a small synthetic dataset so the tutorial is fully reproducible offline — no downloads required.
# setup_data.py
from pathlib import Path
import numpy as np
from PIL import Image
CLASS_NAMES = [
"airplane", "automobile", "bird", "cat", "deer",
"dog", "frog", "horse", "ship", "truck",
]
DATA_DIR = Path("datasets/debugging_tutorial")
NUM_TRAIN_PER_CLASS = 32
NUM_VAL_PER_CLASS = 8
IMAGE_SIZE = (96, 96)
if __name__ == "__main__":
for split, num_per_class in (("train", NUM_TRAIN_PER_CLASS), ("val", NUM_VAL_PER_CLASS)):
split_idx = 0 if split == "train" else 1
for class_idx, class_name in enumerate(CLASS_NAMES):
split_dir = DATA_DIR / split / class_name
for img_idx in range(num_per_class):
seed = split_idx * 1_000_000 + class_idx * 10_000 + img_idx
rng = np.random.default_rng(seed)
pixels = rng.integers(0, 256, size=(*IMAGE_SIZE, 3), dtype=np.uint8)
split_dir.mkdir(parents=True, exist_ok=True)
Image.fromarray(pixels, mode="RGB").save(split_dir / f"img_{img_idx:04d}.png")
print(f"Dataset built at {DATA_DIR.resolve()}.")
python setup_data.py
Build the Broken Model¶
We define an UnstableReLU that overflows in fp16, and monkey-patch
torchvision.models.resnet18 so LightlyTrain’s internally-built model gets it.
# broken_model.py
from contextlib import contextmanager
import torch
from torch import nn
from torchvision.models._api import BUILTIN_MODELS
class UnstableReLU(nn.Module):
def __init__(self, scale: float = 1.0):
super().__init__()
self.scale = float(scale)
def forward(self, x: torch.Tensor) -> torch.Tensor:
# Force computation into float16. Without this cast, PyTorch's autocast
# keeps `torch.exp` in float32 and the layer would NOT overflow in
# mixed precision training.
x_fp16 = x.to(dtype=torch.float16)
out_fp16 = torch.where(
x_fp16 > 0,
torch.exp(x_fp16 * self.scale),
torch.zeros_like(x_fp16),
)
return out_fp16.to(dtype=x.dtype)
@contextmanager
def patched_resnet18(scale: float = 1.0):
import torchvision.models
import torchvision.models.resnet
original = torchvision.models.resnet.resnet18
original_builtin = BUILTIN_MODELS["resnet18"]
def broken(*args, **kwargs):
model = original(*args, **kwargs)
model.layer2[1].relu = UnstableReLU(scale=scale)
return model
# Patch all three references — torchvision.models.get_model goes through
# the BUILTIN_MODELS registry, so patching only one is not enough.
torchvision.models.resnet18 = broken
torchvision.models.resnet.resnet18 = broken
BUILTIN_MODELS["resnet18"] = broken
try:
yield
finally:
torchvision.models.resnet18 = original
torchvision.models.resnet.resnet18 = original
BUILTIN_MODELS["resnet18"] = original_builtin
exp(x) overflows in float16 for x > ~11. The _features prefix in the
DebugUnderflowOverflow log lines is added by Fabric; the original module is
model.layer2[1].relu.
Run with DebugUnderflowOverflow¶
# broken_finetuning.py
from pathlib import Path
from broken_model import patched_resnet18
from setup_data import CLASS_NAMES
import lightly_train
DATA = {
"train": Path("datasets/debugging_tutorial/train"),
"val": Path("datasets/debugging_tutorial/val"),
"classes": {i: name for i, name in enumerate(CLASS_NAMES)},
}
if __name__ == "__main__":
with patched_resnet18():
lightly_train.train_image_classification(
out="out/debugging_broken",
data=DATA,
model="torchvision/resnet18",
precision="16-mixed",
accelerator="cpu",
steps=10,
batch_size=8,
model_args={"lr": 1e-3},
debug_args={
"underflow_overflow": {
"enabled": True,
"max_frames_to_save": 21,
}
},
save_checkpoint_args={"save_last": False},
overwrite=True,
)
python broken_finetuning.py
DebugUnderflowOverflow registers forward hooks on every module and aborts at the first
inf/nan:
ValueError: DebugUnderflowOverflow: inf/nan detected, aborting as there is no
point running further. Please check the debug log file for the activation
values prior to this event.
The frame dump is at out/debugging_broken/debug/underflow_overflow_rank0.log. The
smoking gun is at the bottom:
_forward_module.model.backbone._features.layer2.1.relu UnstableReLU
9.54e-07 1.61e+01 input[0]
0.00e+00 inf output
inf output from a normal-range input — that’s the unstable layer.
See It as a Gradient-Norm Problem¶
DebugUnderflowOverflow aborts training. To see the gradient-norm pattern that leads
there, run the broken model without the monitor. We use scale=0.8 so the
instability isn’t instantaneous — it gives one normal step before everything goes NaN.
# broken_diagnostic.py
from pathlib import Path
from broken_model import patched_resnet18
from setup_data import CLASS_NAMES
import lightly_train
DATA = { # same as broken_finetuning.py
"train": Path("datasets/debugging_tutorial/train"),
"val": Path("datasets/debugging_tutorial/val"),
"classes": {i: name for i, name in enumerate(CLASS_NAMES)},
}
if __name__ == "__main__":
with patched_resnet18(scale=0.8):
lightly_train.train_image_classification(
out="out/debugging_broken_diagnostic",
data=DATA,
model="torchvision/resnet18",
precision="16-mixed",
accelerator="cpu",
steps=10,
batch_size=8,
model_args={"lr": 1e-3},
save_checkpoint_args={"save_last": False},
overwrite=True,
)
python broken_diagnostic.py
Console output:
Train Step 1/10 | train_loss: 2.2967 | grad_norm: 4.9266
Train Step 2/10 | train_loss: 2.3861 | grad_norm: nan
Train Step 3/10 | train_loss: nan | grad_norm: nan
...
Train Step 10/10 | train_loss: nan | grad_norm: nan
Step 1 looks clean. Step 2 has a finite loss but NaN gradient — the unstable layer overflowed in the backward pass (corrupting gradients) while the forward pass still produced finite logits. From step 3 onward, every step is NaN.
Compare with a Healthy Run¶
# fixed_finetuning.py
from pathlib import Path
from setup_data import CLASS_NAMES
import lightly_train
DATA = { # same as broken_finetuning.py
"train": Path("datasets/debugging_tutorial/train"),
"val": Path("datasets/debugging_tutorial/val"),
"classes": {i: name for i, name in enumerate(CLASS_NAMES)},
}
if __name__ == "__main__":
lightly_train.train_image_classification(
out="out/debugging_fixed",
data=DATA,
model="torchvision/resnet18",
precision="16-mixed",
accelerator="cpu",
steps=10,
batch_size=8,
model_args={"lr": 1e-3},
save_checkpoint_args={"save_last": False},
overwrite=True,
)
python fixed_finetuning.py
Console output:
Train Step 1/10 | train_loss: 2.3036 | grad_norm: 4.6890
Train Step 2/10 | train_loss: 2.3426 | grad_norm: 4.7964
Train Step 3/10 | train_loss: 2.3777 | grad_norm: 4.9420
Train Step 4/10 | train_loss: 2.2944 | grad_norm: 4.9719
Train Step 5/10 | train_loss: 2.3872 | grad_norm: 5.0357
Train Step 6/10 | train_loss: 2.4790 | grad_norm: 5.8368
Train Step 7/10 | train_loss: 2.4271 | grad_norm: 7.7066
Train Step 8/10 | train_loss: 2.2819 | grad_norm: 5.5508
Train Step 9/10 | train_loss: 2.4061 | grad_norm: 6.0739
Train Step 10/10 | train_loss: 2.4807 | grad_norm: 5.7085
Stable gradient norms in a healthy range (≈ 4.7–7.7) — the baseline.
Visualize the Comparison¶
# visualize.py
import re
from pathlib import Path
import matplotlib.pyplot as plt
LINE = re.compile(
r"Train\s+Step\s+(?P<step>\d+)/\d+.*?grad_norm:\s*(?P<norm>\S+)"
)
def parse(path: Path):
steps, norms = [], []
for line in path.read_text().splitlines():
m = LINE.search(line)
if not m:
continue
try:
v = float(m["norm"])
except ValueError:
continue
if v == v: # drop NaN
steps.append(int(m["step"]))
norms.append(v)
return steps, norms
fig, ax = plt.subplots()
for label, log in [
("fixed (no patch)", "out/debugging_fixed/train.log"),
("broken (scale=0.8)", "out/debugging_broken_diagnostic/train.log"),
]:
steps, norms = parse(Path(log))
if steps:
ax.plot(steps, norms, marker="o", label=label)
ax.set_yscale("log")
ax.set_xlabel("Step")
ax.set_ylabel("grad_norm (log scale)")
ax.set_title("Gradient norms: broken vs fixed")
ax.legend()
ax.grid(True, alpha=0.3)
fig.tight_layout()
fig.savefig("gradient_norm_comparison.png", dpi=120, bbox_inches="tight")

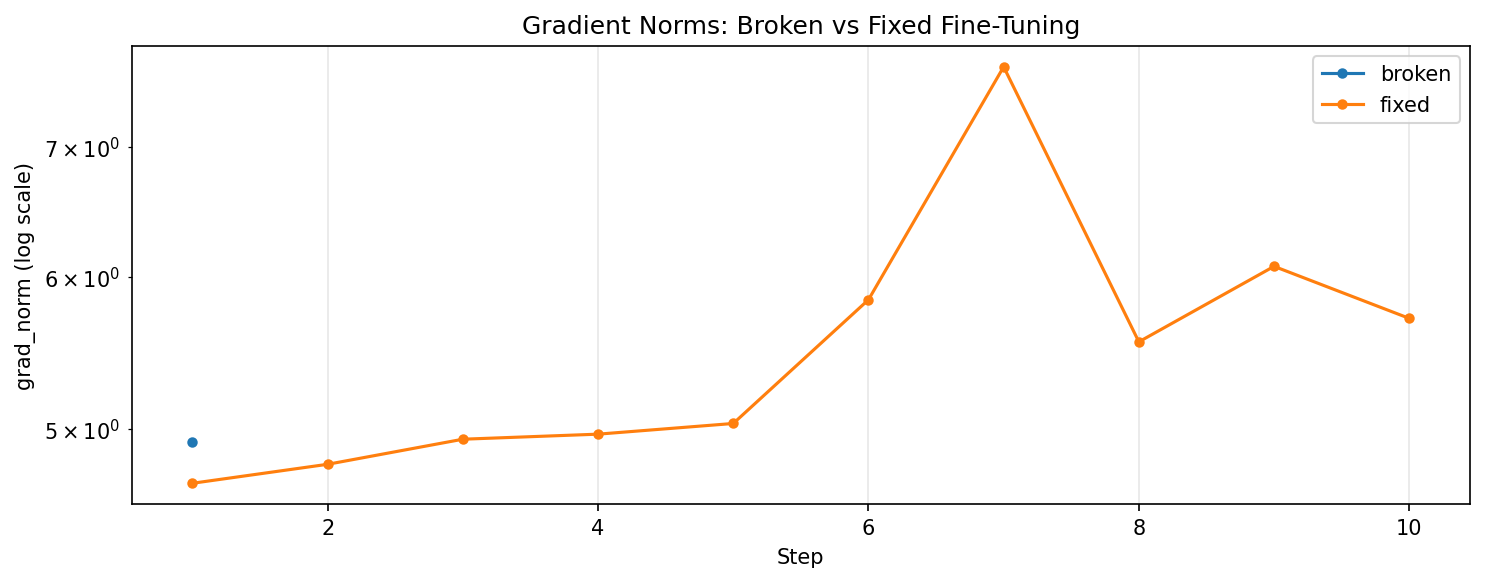

The broken run contributes one data point (step 1, NaN-filtered); the fixed run contributes ten.
The fix is to use the standard ReLU — i.e. don’t enter patched_resnet18().
Next Steps¶
The same
debug_argsshape works fortrain_object_detectionandtrain_instance_segmentation.For the full
debug_argsreference, see the LightlyTrain API documentation.For implementation details on gradient-norm logging and
DebugUnderflowOverflow, seesrc/lightly_train/_debug/.
That’s the debugging workflow — gradient norms catch the symptom,
DebugUnderflowOverflow finds the cause. 🎉
